Gunnison LD 4 Bay Raft Frame

$549.95$619.95

Rugged simplicity sums up this classic Gunnison frame. Built with our schedule 40 LD (1.25″ ID) pipe, this frame is built to last a lifetime and can carry enough gear to get you through the day or the week. Paired nicely with a optional DRE chair and dry box, this frame can hold all the essentials without over-complicating things. Frame includes oar towers and kickbar.

  • Oversized shipping charges apply.
Clear selection
We try to expedite shipments as quickly as possible, but please allow up to 3 business days to process an order. If you require expedited shipping, please call us.
SKU: N/A Category:

Accessories for your raft…

Light Duty Frames are the lighter weight versions of our Extra Duty frames.

  • The pipe we use is 1.25” (1 5/8” O.D.) 6063 alloy Schedule 40 T6 aluminum extruded in a process designed specifically for DRE to give the best combination of weight and strength. We use the thickest Clear Anodizing for maximum durability.
  • The main hoop is made with swaged joints in conjunction with bent corners to provide great strength and super quick break down.
  • We only use Hollaender Al-Mag 535 fittings, which are the best available. These fittings have physical strength characteristics comparable to malleable iron at one-third the weight.
Submit your review
1
2
3
4
5
Submit

Cancel

Create your own review

Average rating:
 0 reviews

Product Info

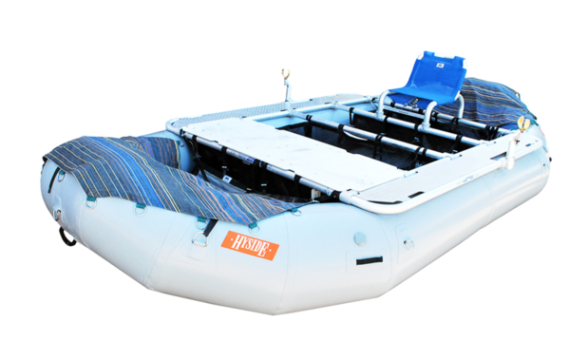

Every DRE frame is custom designed and built to specifically fit your boat and your needs. We do not believe in the “one size fits all” approach. When you purchase a DRE frame, we will set the length and width to fit your boat and the bay openings to accommodate your gear.  All frames are built onsite which gives us great flexibility in meeting your needs.  All DRE frames are designed with safety and functionality in mind. Only DRE frames provide maximum storage in your cargo area by utilizing designs that don’t waste space.

  • DRE has integrated its kick bar into a cross bar. Which allows our kick bar to support a cooler or dry box and still provide a firm place to put your feet.  It adjusts to an angle that exactly suits your foot position. Designed to allow two different angle settings; one for you and if you have a taller/shorter person rowing your rig, the other position will make them happy too. (Kick bar angles should be selected and pinned during initial frame setup.)
  • Optional Poly decks are hinged via our new additional Deck Hinge system to allow easy access to the gear storage area below the deck.
  • All cross bars are fully adjustable to accommodate different sized gear in the future.
  • Super quick break down for portage or transportation. Loosen 10 sets screws and pull 4 snap pins … it’s that simple.
  • DRE’s standard oar towers are the best there are and provide all the adjustability you need to get the perfect rowing position.
  • The towers easily adjust forward or backward to accommodate any arm length.
  • Built in 12° offset to provide the correct relationship between the oar shaft and oar lock. If further adjustment is needed the towers can be easily canted in or out.
  • By design, our oar towers are initially “extra tall” to accommodate even the tallest rower. During an initial one time set up, the bottom of the oar tower needs to be cut off to lower the oar lock to the best height for you.
  • DRE’s oar tower system allows you to make all the adjustments you need to get the exact stroke that you like. This is most appreciated in big water where “every little bit” counts.

DRE only uses the very best of materials and manufacturing processes for our products. It is our intention to provide a frame that will stand up to the biggest whitewater for many decades. The pipe we use is 1.25” (1 5/8” O.D.) 6063 alloy Schedule 40 T6 aluminum extruded in a process designed specifically for DRE to give the best combination of weight and strength. We use the thickest Clear Anodizing for maximum durability. The main hoop is made with swaged joints in conjunction with bent corners to provide great strength and super quick break down. We only use Hollaender Al-Mag 535 fittings, which are the best available. These fittings have physical strength characteristics comparable to malleable iron at one-third the weight.
